DNH18 سلسلة قطاع فيوز فاصل

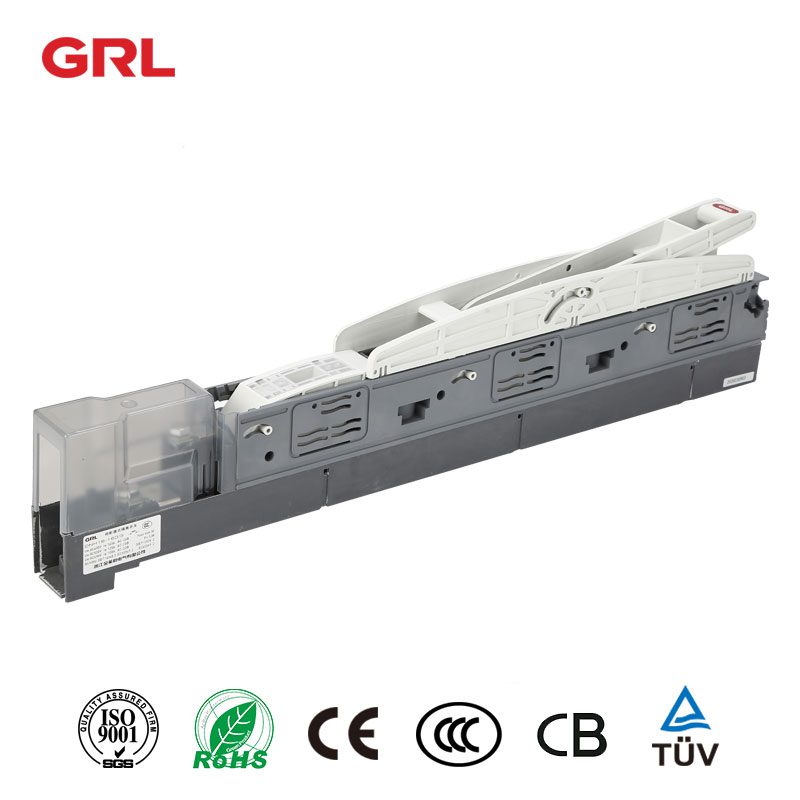

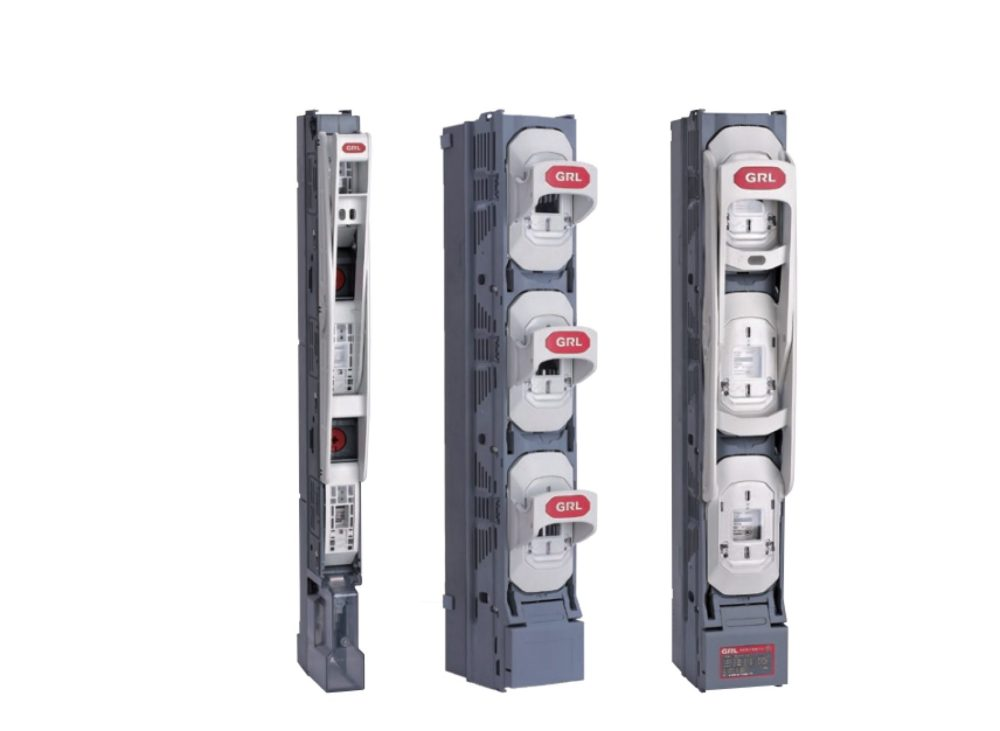

قطاع فيوز فاصل DNH18 سلسلة يدمج مفهوم التصميم من الابتكار المستقل، مع مظهر جديد ووظيفة ترقية.

لديها 6 براءات اختراع نموذج فائدة و 4 براءات اختراع المظهر ، والتي يمكن أن توفر تركيبا أكثر أمانا ومريحة ووضع تشغيل لصناديق فرع الكابلات ومحولات الصندوق الأمريكية ، إلخ.

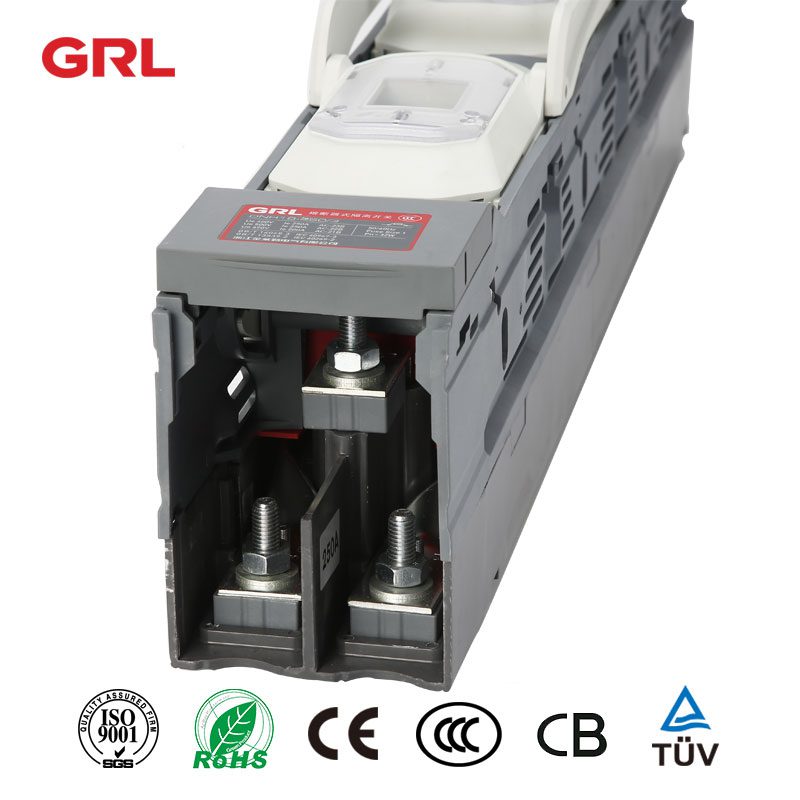

  • إضافة تركيب كتلة تحديد المواقع
  • إضافة رئيس حماية
  • تحسين وحدة التثبيت الأساسية القابلة للصهر
  • إضافة أخاديد تبريد
  • إضافة درع دوار
  • يمكن اختيار أوضاع الأسلاك المختلفة
  • تصميم المحولات المتكاملة
  • يمكن اختيار وحدات وظيفة متعددة
  • شعار فريد من نوعه ، أكثر تميزا

Backend timeout, please retry it later

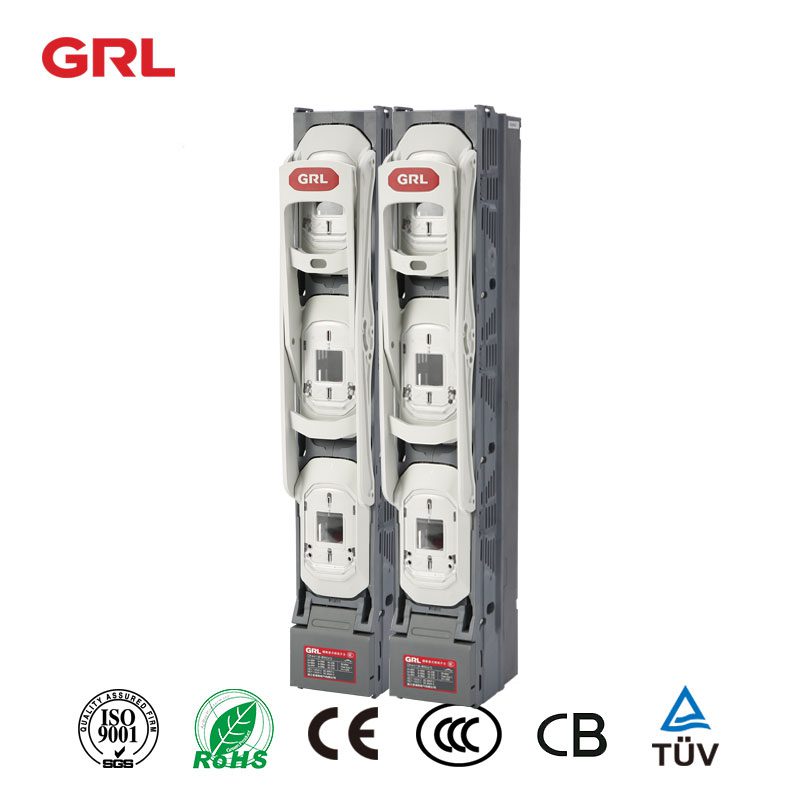

Strip Fuse Disconnector DNH18 series

GRL is the ideal fuse switch disconnector manufacturer for you. We have a proud history of crafting top-quality products, and we provide outstanding customer service.

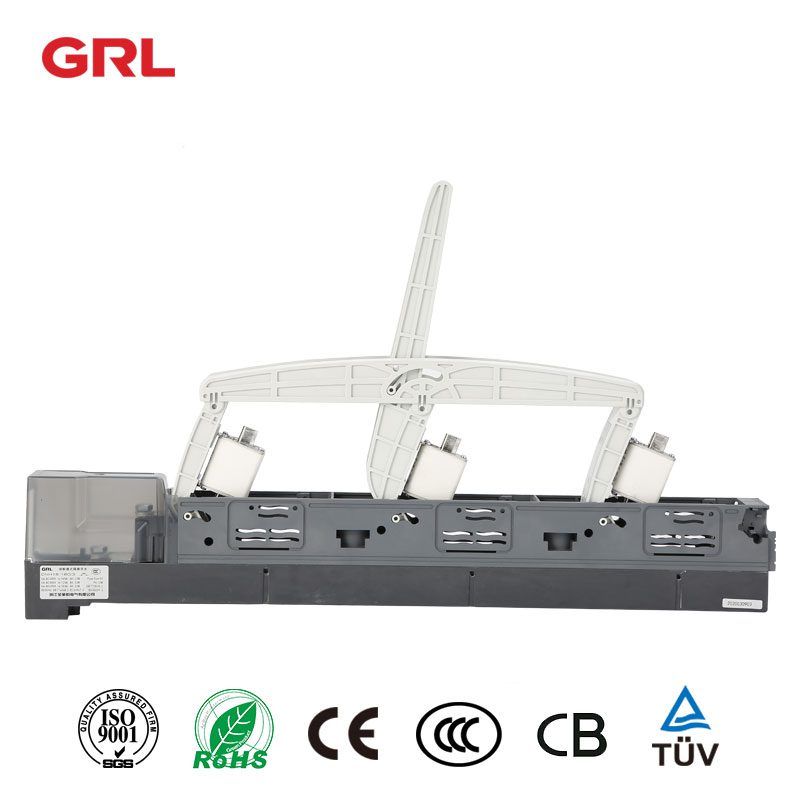

Strip Fuse Disconnector



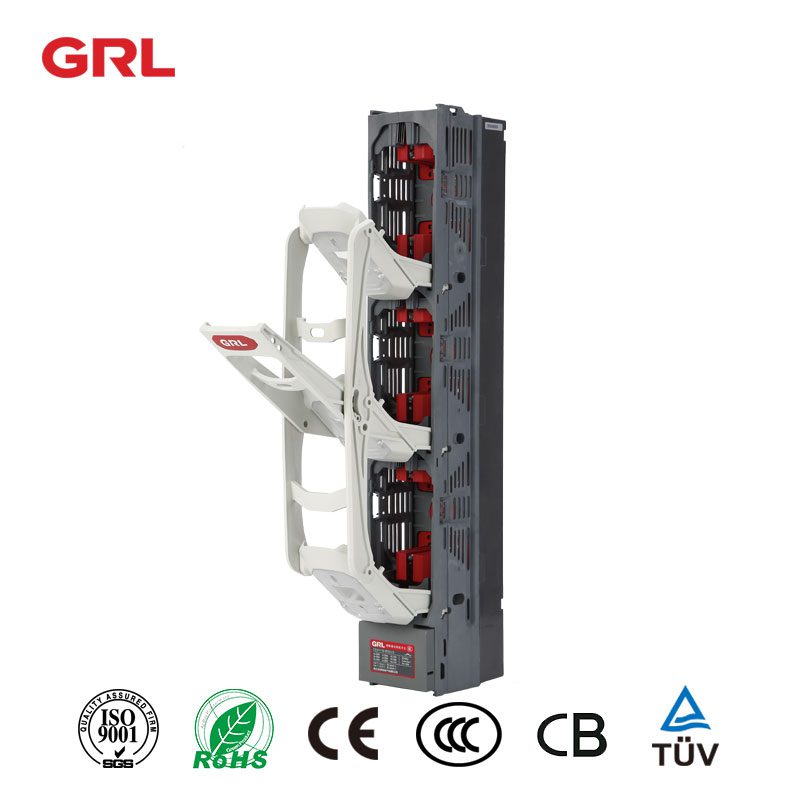

Strip Fuse Disconnector-2



Fuse Disconnector General Model List

Serial number

Order No Electric current

Adaptation

1

DNH18-160/3L 160A Fixed installation (punching), three-phase synchronous operation, with fuse

2

DNH18-160/311L 160A Hook up installation, with auxiliary contact, three-phase synchronous operation, with fuse

3

DNH18-250/3L 250A Fixed installation (punching), three-phase synchronous operation, with fuse

4

DNH18-250/3S 250A Fixed installation (punching), three-phase independent operation, with fuse

5

DNH18-250/3LD 250A Fixed installation (punching), three-phase synchronous operation, with isolating knife

6

DNH18-250/311L 250A Hook up installation, with auxiliary contact, three-phase synchronous operation, with fuse

7

DNH18-400/3L 400A Fixed installation (punching), three-phase synchronous operation, with fuse
8 DNH18-400/3S 400A Fixed installation (punching), three-phase independent operation, with fuse

9

DNH18-400/3LD 400A A fixed installation (punching), three-phase synchronous operation, with isolating knife

10

DNH18-400/311L 400A Hook up installation, with auxiliary contact, three-phase synchronous operation, with fuse

11

DNH18-630/3L 630A Fixed installation (punching), three-phase synchronous operation, with fuse

12

DNH18-630/3S 630A Fixed installation (punching), three-phase independent operation, with fuse

13

DNH18-630/3LD 630A Fixed installation (punching), three-phase synchronous operation, with isolating knife

14

DNH18-630/311L 630A Hook up installation, with auxiliary contact, three-phase synchronous operation, with fuse

Remarks

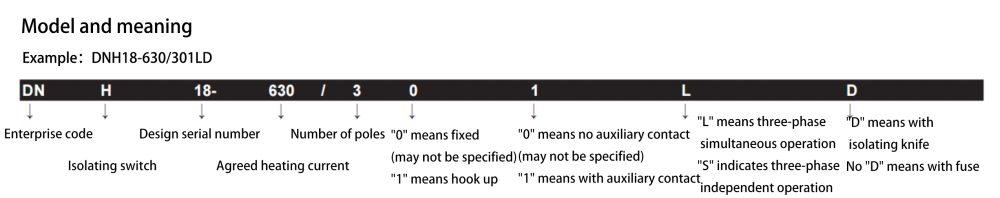

1. For other specific order models, please see the explanation of the model of the bar fuse disconnector
  2. If you need other accessories, such as wiring terminals, please check the accessories list of strip fuse disconnector

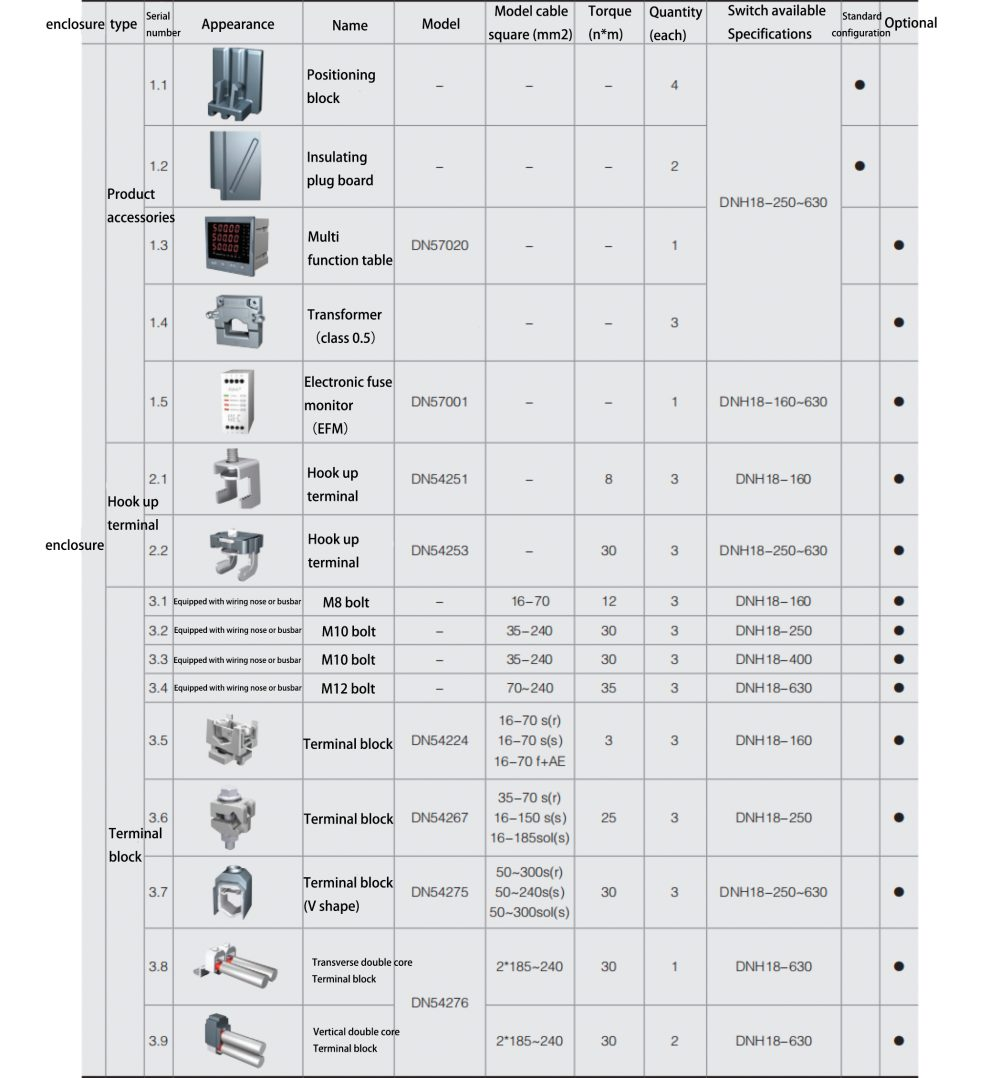

Fuse Disconnector Technical Parameter


DNN18-160

DNN18-250 DNN18-400

DNN18-630

Electrical parameters

With fuse Rated working voltage Ue V AC

400

AC

500

AC

690

AC

400

AC

500

AC

690

AC

400

AC

500

AC

690

AC

400

AC

500

AC

690





Rated working current Ie A 160 125 100 250 250 200 400 400 315 630 630

630



Agreed heating current

Ith A 160 125 100 250 250 200 400 400 315 630 630

630



Service level

    AC-23B AC-23B AC-22B AC-23B AC-22B AC-21B AC-23B AC-22B AC-21B AC-23B AC-22B

AC-21B



Rated limiting short-circuit current

Iq kA 50 100 100 50 100 100 50 100 100

50





Rated insulation voltage Ui V 1000 1000 1000

1000



Rated impulse withstand voltage

Uimp kV 8 12 12

12



  Rated frequency   Hz 50/60 50/60 50/60

50/60



Electric life times

  time 200 200 200

200



With isolating knife

Rated working voltage Ue V AC500 AC500 AC500



Rated working current

Ie A 250 400 630


Agreed heating current

Ith A 250 400 630



Service level

    AC-23B AC-23B AC-23B



  Rated limiting short-circuit current Iq kA 12 12 12



Rated insulation voltage

Ui V 100 1000

1000





Rated impulse withstand voltage Uimp kV 12 12

12



Rated frequency

  Hz 5060 5060

5060



  Electric life times   time 200 200

200

Fuse

Size (RT16/NT/NH)

GB/T13539.2

IEC 62269-2

    00 1 2

3



Working current In A 160 125 100 250 250 200 400 400 315 630 630

500



power waste

P W 12 12 12 18 23 32 28 34 45 40 48

60

Mechanism

Mechanical life   time 1400 1400 800 800 1400

800



Busbar spacing

  mm 185 185 185

185

Protection grade of mechanism

 Front



on   IP20 IP20 IP20

IP20



off

  IP30 IP30 IP30

IP30

Other



Electronic fuse monitor (EFM)     Can be added Can be added Can be added

Can be added



Switch opening and closing signal feedback (microswitch)

    Can be added Can be added Can be added Can be added

Working conditions



Ambient air temperature

-5 ~ +55



Rated working system

    Uninterrupted working system


Operation mode



Handle operation



Installation method



Vertical installation



Altitude

  m

≤ 2000



class of pollution



3



Overvoltage level

Overvoltage level





Strip Fuse Disconnector-3

Click to view grl DNH7-160 product>>

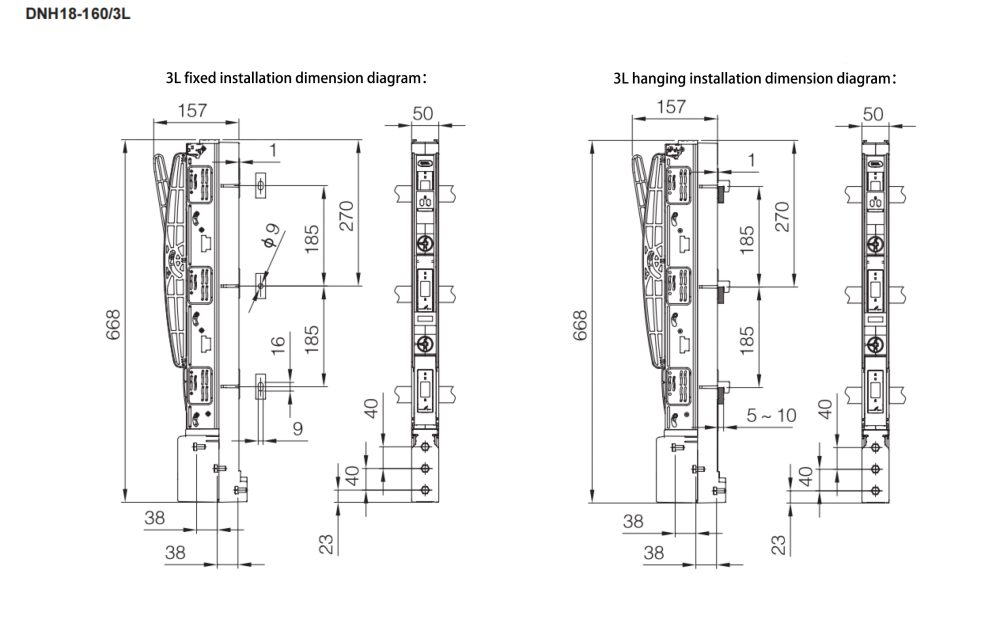

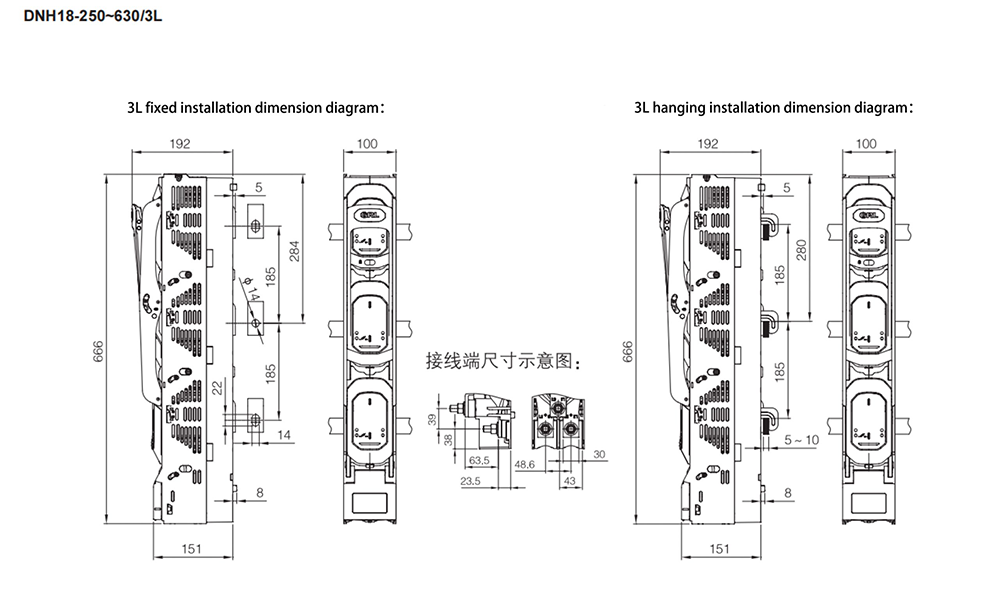

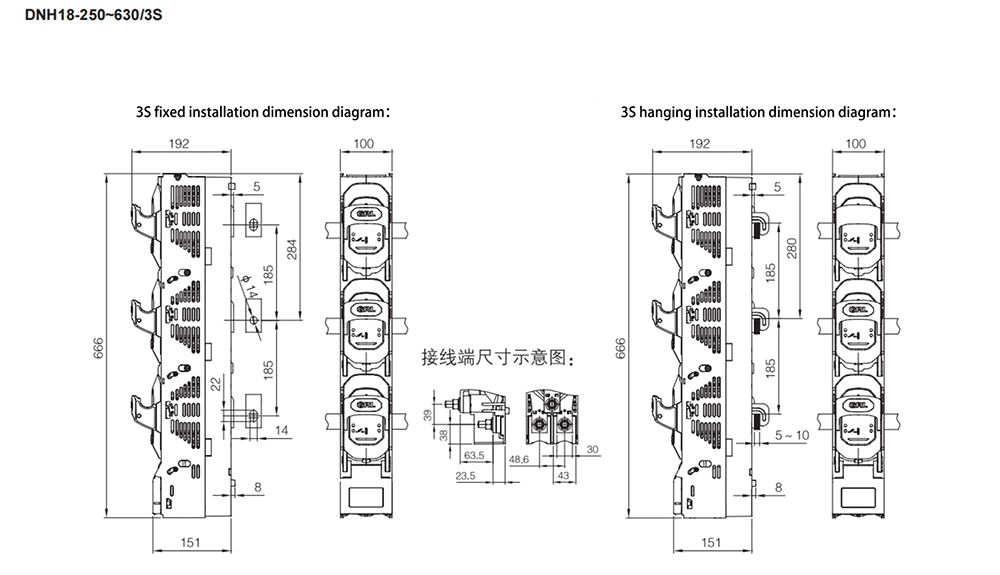

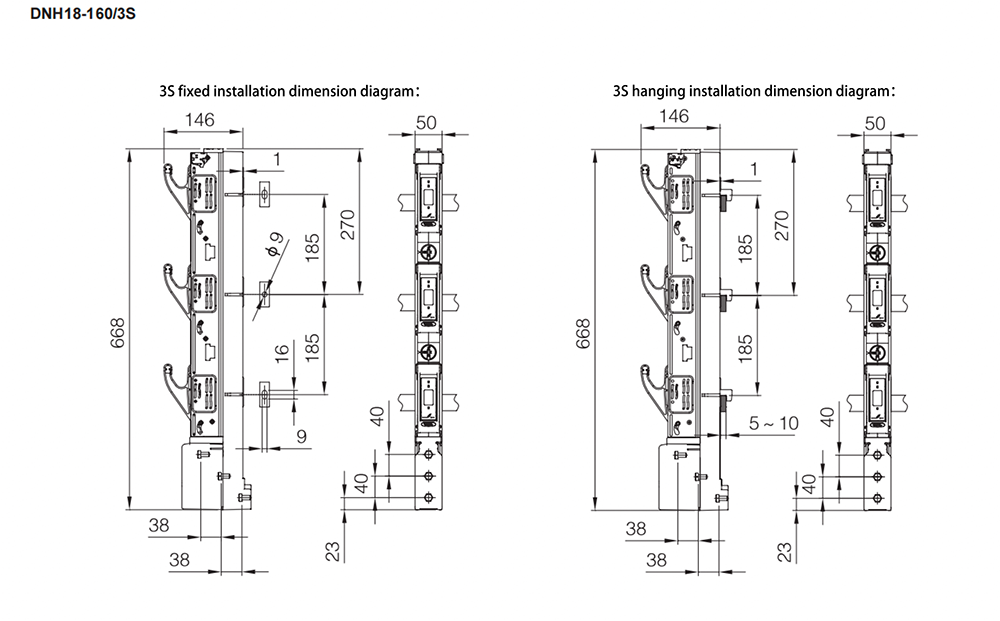

Fuse Disconnector Outline and Installation Dimension (mm)


Strip Fuse Disconnector-4


Strip Fuse Disconnector-5


Strip Fuse Disconnector-6


Strip Fuse Disconnector-7

Click to view grl group company information>>

Click to view grl Fuse Switch Disconnector product>>

Click to view grl fuse product>>
